| ▸ Amp Hour | 200 AH at C20 Rating |
| ▸ Self Discharge | <3% / Month |
| ▸ Cells | Presmatic Cells |
| ▸ Recommended Charge Current | 20 AH |
| ▸ Max Charge Current | 50 AH |
| ▸ Recommended Charge Voltage | 14.6 Volt |
| ▸ Charge Cut-Off Voltgage | <15.2 Volt (0.5 ~ 1.5 s) |
| ▸ Reconnect Voltage | >14.4 Volt |
| ▸ Balancing Voltage | <14.0 Volt |
| ▸ Maximum Batteries in Series | 4 |
| ▸ Maximum Batteries in Parallel | 4 |

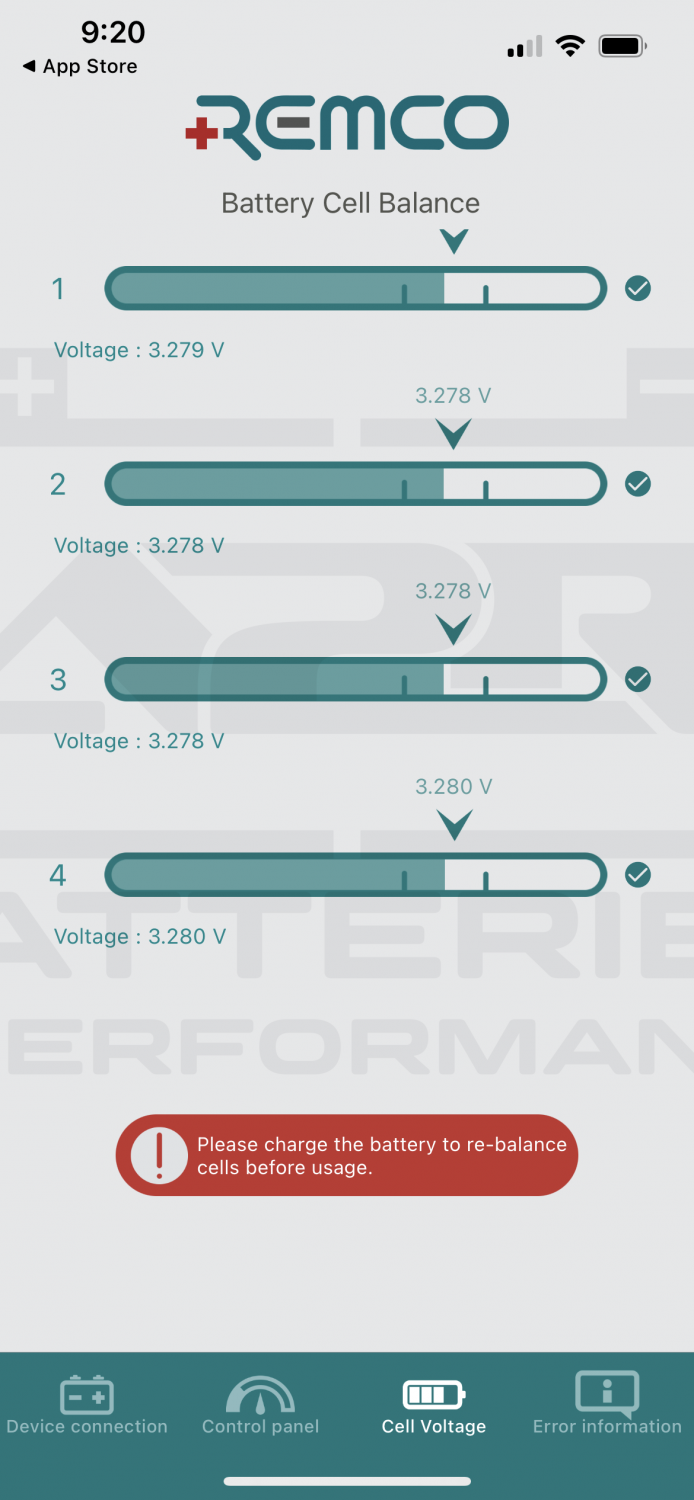

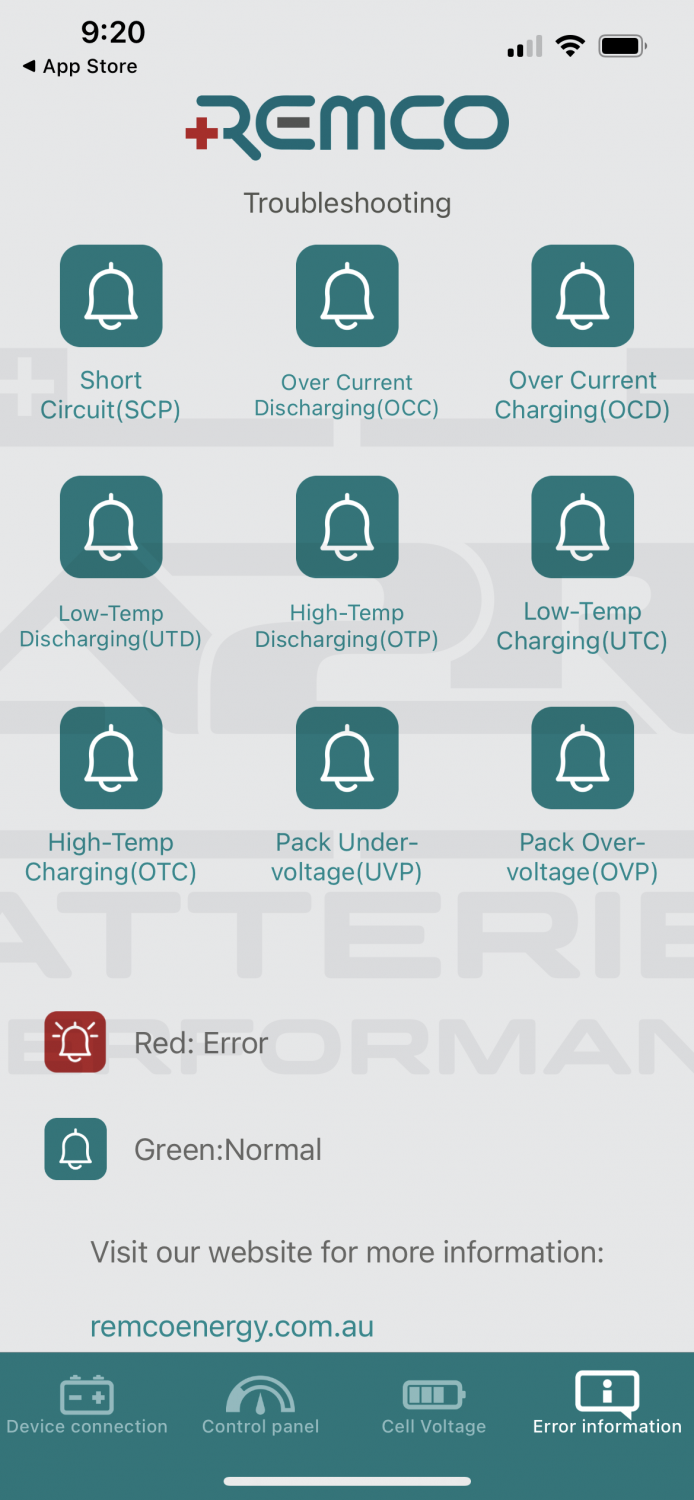

| ▸ Bluetooth | Yes there is, and app to download |
| ▸ Case Material | ABS |
| ▸ Enclosure Protection | IP65 |
| ▸ Maximum Continious Discharge Current | 150 AH |
| ▸ Recommended Low Volt Disconnect | 10 Volts |
| ▸ Short Circuit Protection | 200 ~ 600 µs |
| ▸ Discharge Temperature | 20 ~ 60 Degrees |
| ▸ Charge Temperature | 0 ~ 45 Degrees |
| ▸ Storage Temperature | 5 ~ 35 Degrees |
| ▸ High Temperature Cut-Off | 65 Degrees |
| ▸ Reconnect Temperature | 48 Degrees |
| ▸ Length | 522 mm |
| ▸ Width | 240 mm |
| ▸ Case Height | 218 mm |
| ▸ Total Height Inc Terminals | 218 mm |
| ▸ Terminal Layout | Left Hand Positive |
| ▸ Terminal Type | M8 Female Hole with 8mm Bolt Down |
