| Product | Auto Energy 12V Lithium Deepcycle Battery |
| Part Number | AE-LFP12V100(GRP27) |
| Key Features | ➛ Extremely lightweight compared to traditional batteries
➛ 3000+ recharge cycles and up to 5 times more compared to AGM
➛ Less maintenance and no sulphation from being left flat
➛ 100% Amp hour capacity available compared to regular Lead Acid/AGM
➛ Faster recharging compared to traditional batteries
➛ Connect up to 6 batteries as a Series Link to make 72 Volts
➛ Connect up to 4 batteries in Parallel link to retain 12 Volts and create higher amperage
➛ Less fuel consumption with lighter products and potentially balance out weight in your application |
| Voltage | 12.8 Volts (1280WH) |
| General Specifications |
| ▸ Cell Chemistry | LiFePO4 | | ▸ Case Material | ABS Case | | ▸ Enclosure Protection | IP65 | | ▸ CCA | N/A | | ▸ AH | 100AH | | ▸ Length | 307 mm | | ▸ Width | 169 mm | | ▸ Case Height | 211 mm | | ▸ Total Height Inc Terminals | 215 mm | | ▸ Terminal Type | M8 | | ▸ Weight | 10 KG |
 |
| Electrical Characteristics |
| ▸ Parallel Link Batteries | 4 Batteries, Retaining 12 Volt | | ▸ Series Link Batteries | 6 Batteries, Max 72 Volt | | ▸ Cycle Life @ 80% DOD | >6000 Cycles | | ▸ Self Discharge | <3% per Month |
|
| Charge Characteristics |
| ▸ Recommended Charge Current | 20A-40A | | ▸ Maximum Charge Current | 50A | | ▸ Recommended Charge Voltage | 14.0V - 14.6 Volt | | ▸ BMS Charge Voltage Cut - Off | 14.6 Volt |
|
| Discharge Characteristics |
| ▸ Maximum Continuous Discharge Current | 200A (Upgraded Model) | | ▸ Max Instant Discharge Current | 300A ((≤1s) (Battery can safely deliver a massive burst of electrical current up to 300 Amp but only for 1 second or less) | | ▸ BMS Discharge Current Cut - Off | 250±10A (Your Battery Management System will safely shut down the battery if the electrical current draw is exceeding the threshold between 240-260 amps) | | ▸ BMS Low Voltage Cut-Off | 10.4 Volts | | ▸ Short Circuit Protection | ≥600A (Interrupts a short circuit current of 600A or higher) |
|
| Temperature Characteristics |
| ▸ Charge Temperature | 0℃ to 55℃ | | ▸ Discharge Temperature | -20℃ to 60℃ | | ▸ Storage Temperature | -20℃ to 35℃ | | ▸ BMS High Temperature Cut-Off | 70℃ | | ▸ Reconnect Temperature | 65℃ |
|

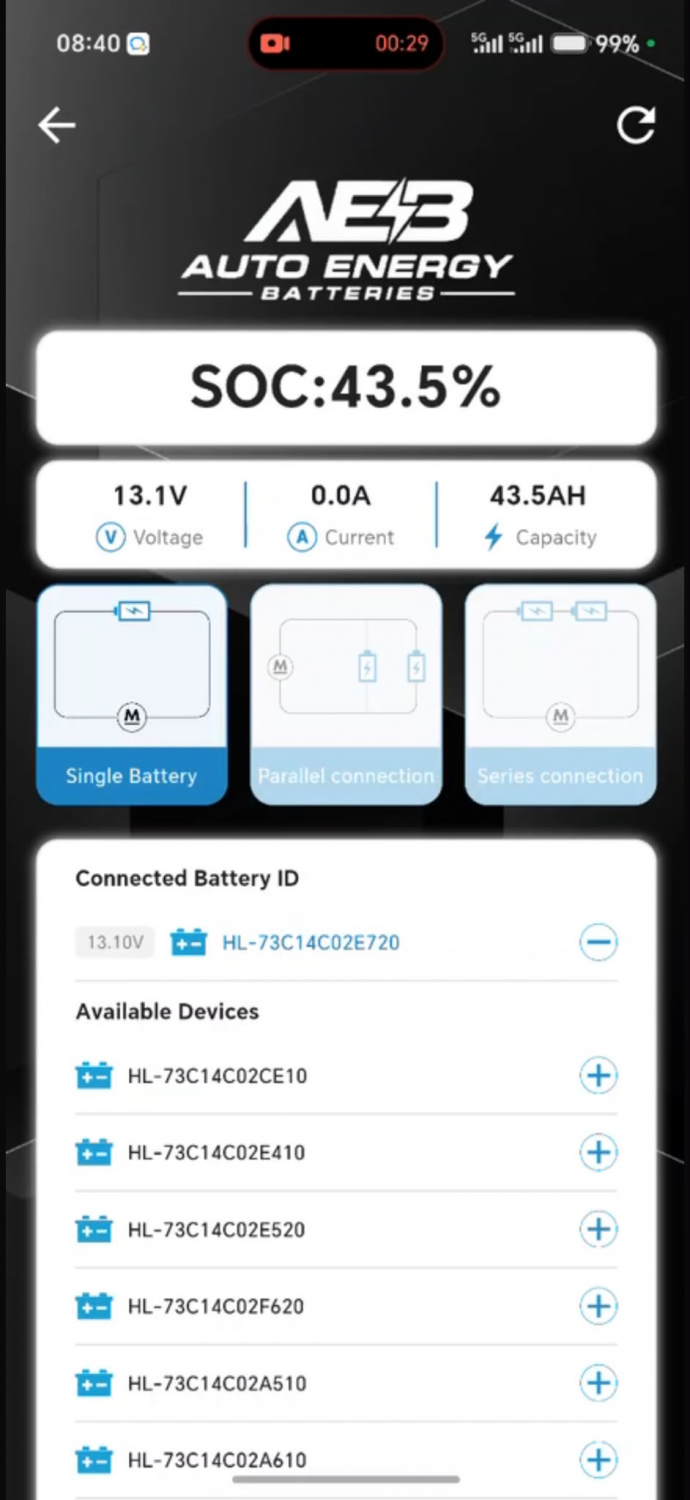

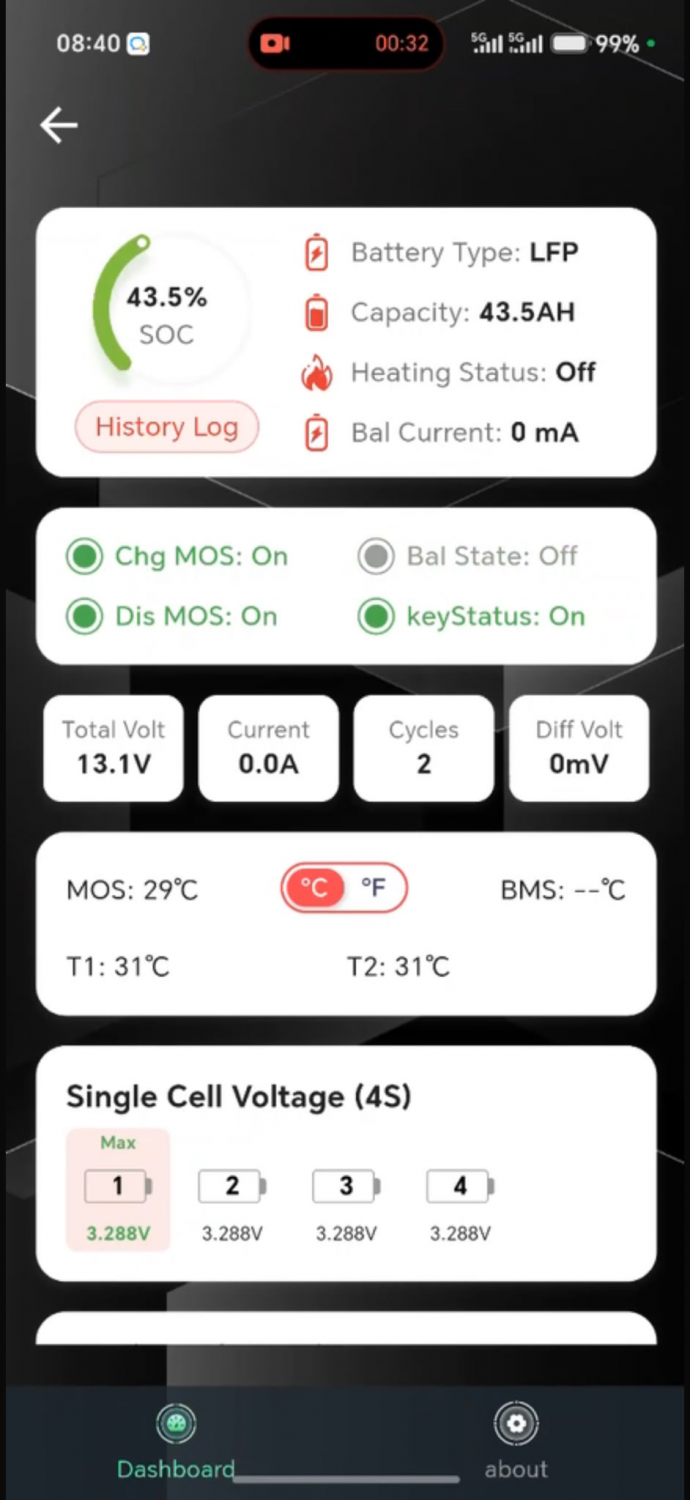

| Example Photos of the Bluetooth Phone Application |   |
| Description | Auto Energy Lithium Batteries come with a downloadable inbuilt bluetooth application to suit both Android and Apple. You will find data on your battery
➛ State of Charge % of charge and capacity monitoring
➛ Amp meter so you're able to easily check the appliance current monitoring system
➛ Charging and discharge Control Switch
➛ Individual cell voltage & balance |
| Warranty | · 36 Month Warranty Private Use
· 12 Months Warranty in Commericial Application.
Despite what other brands of lithium providers may list, we believe that no lithium batteries should be installed under the bonnet due to extreme heat. Our lithium batteries are not recommended and not warranted in this under bonnet environment. Temperature between different applications vary and although it may work fine for one vehicle, this doesn't always mean you’re in the clear. Lithium has safety protections around temperature limits but we will not be liable for any issues relating to engine bay heat. Please be smart with your location of installation. Lithium batteries can live a very long life if setup correctly. |
| Origin | · China |
| Additional Information | A2R Batteries & Performance takes pride in helping our customers to ensure that you are getting the very best suitable product for you application. If you need help finding the product to best suit your application please call our branch landline number NSW: (02)96770535 | VIC: (03)73020511
We recommend to keep your battery on charge when not in use for prolonged intervals because batteries need to stay charged to perform at their best. Batteries below 12.4 Volt are more susceptible to corrosion damage internally. Application not driven often? Invest in a battery trickle charger it will prolong the lifespan of your battery by years. Keep up to date with our social media on
